This number of pictures might constitute as a separate thread possibly in a different forum, but this is more an update + DIY question thread.
First I installed the AV15.
It was only after using 10-32 Hurricane nuts that the driver was fully sealed (using speaker caulk).
Note :: The person I bought the sub from had put Dynamat and Acoustic Foam on all inside walls,
which I discovered were useless.
The Dynamat adds minimal mass, and the Acousic Foam only cancels higher frequencies.
So I pulled everything out.
This is the old speaker (sub+main) placement.
AV15 Installed
AV15 Installed Closeup
AV15 Installed Top View
My entertainment PC is the only source of audio.
Audio Control (matching)
AV15/Speaker/Computer
I might or might not install this on the top/bottom.

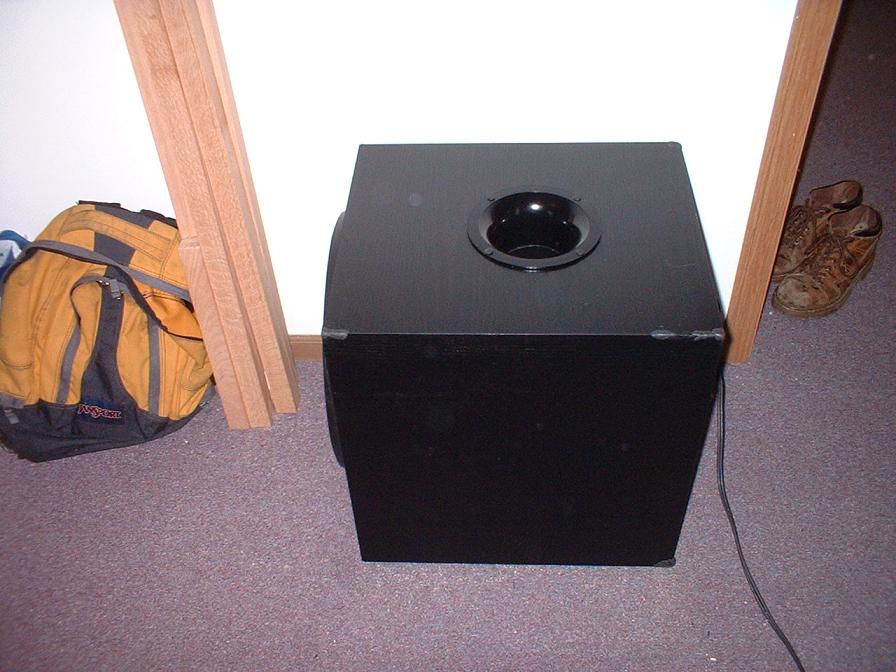

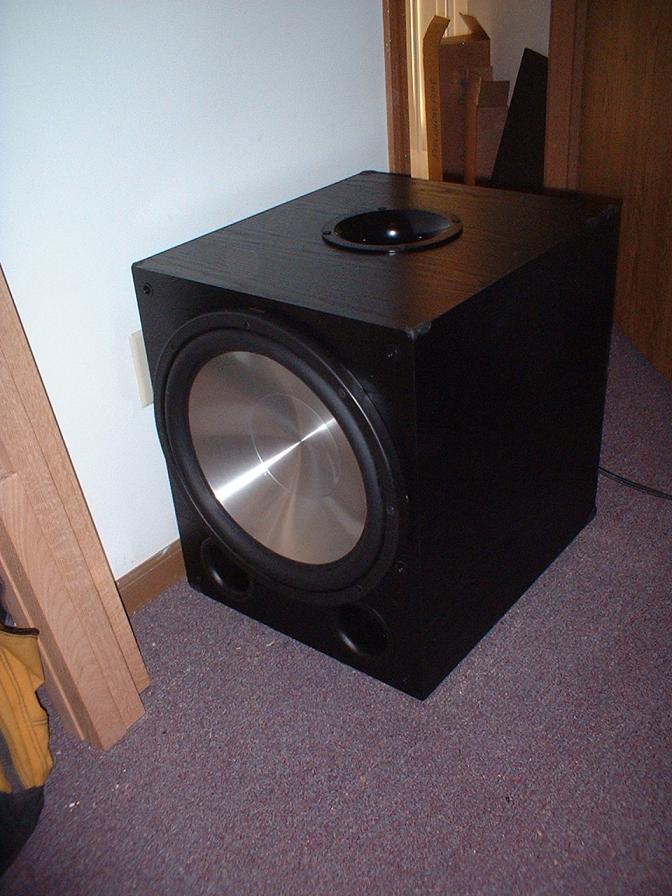

Precision Port Profile
Precision Port Top
Old Driver
At this point I pulled the driver to properly install it,
and took some pics comparing the two.
Stryke Closeup
Versus Top
Versus Side
Further Away
Next I received the Rythmik amp with some upgrades.

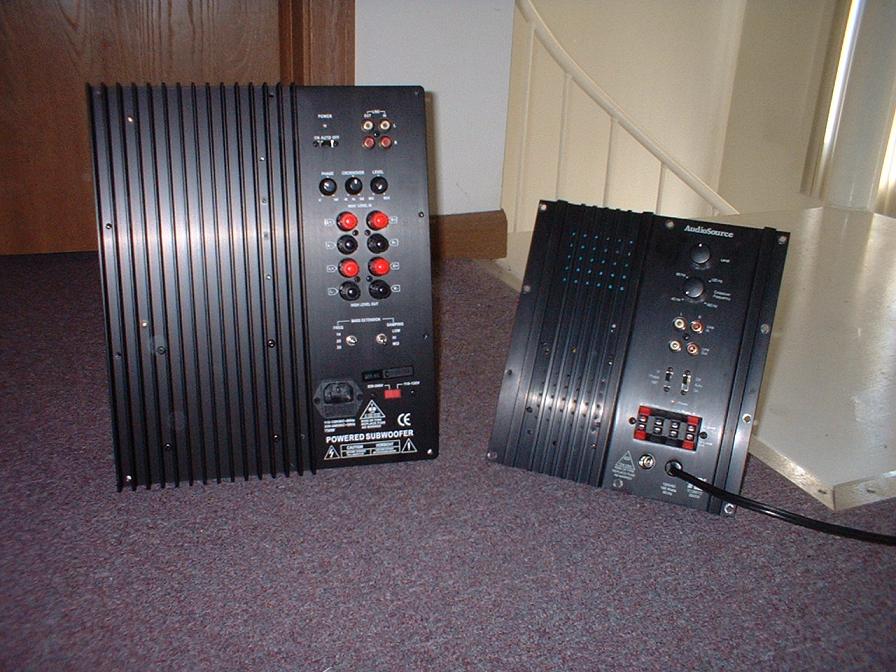

New Rythmik vs Old Audiosource
Rythmik Size
Rythmik Controls
Rythmik Electronics
I also took a set of pictures installing the new Rythmik into the old SW-15 cabinet.
At this point, I realized proper speaker placement was long overdue.
First, I bought some black shelf supports @ Lowes and threw my JBL S26 speakers high in the sky.
(yes i know ear-level is best, but i prefer the raised studio look)
Note the phatty black speaker cable.
Right Speaker
Center View of Room
Left Speaker
I took pictures of the speakers parallel to the wall,
because I thought they looked best that way.
Left Speaker
Right Speaker
Right Speaker 2
Right Room Profile

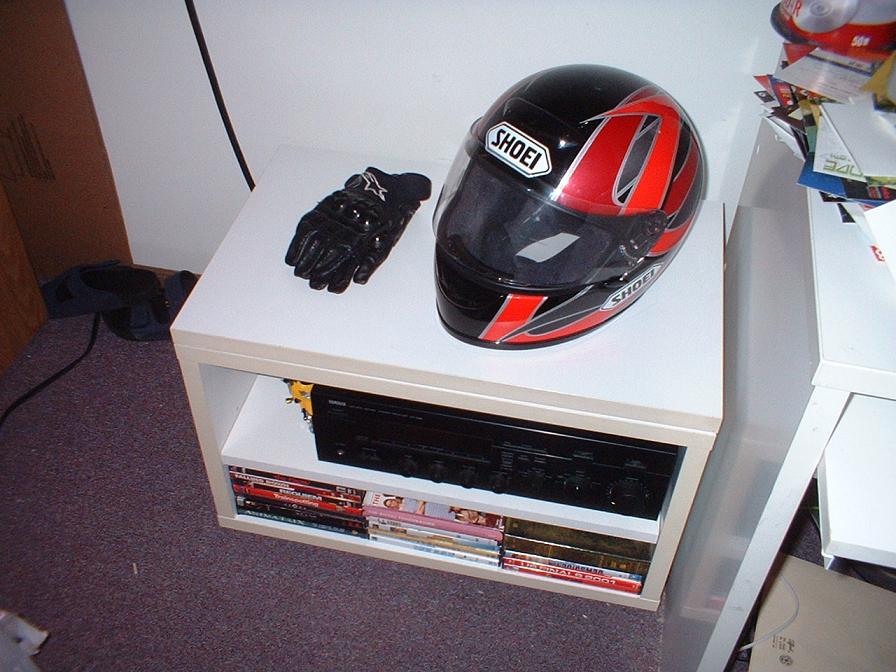

Speaker Receiver- Yamaha RX-595 Yesterday I was given a piece of furniture to put this in.
The subwoofer is currently behind and to the left of my seating.
The sound is improved, however there are still major dead zones.

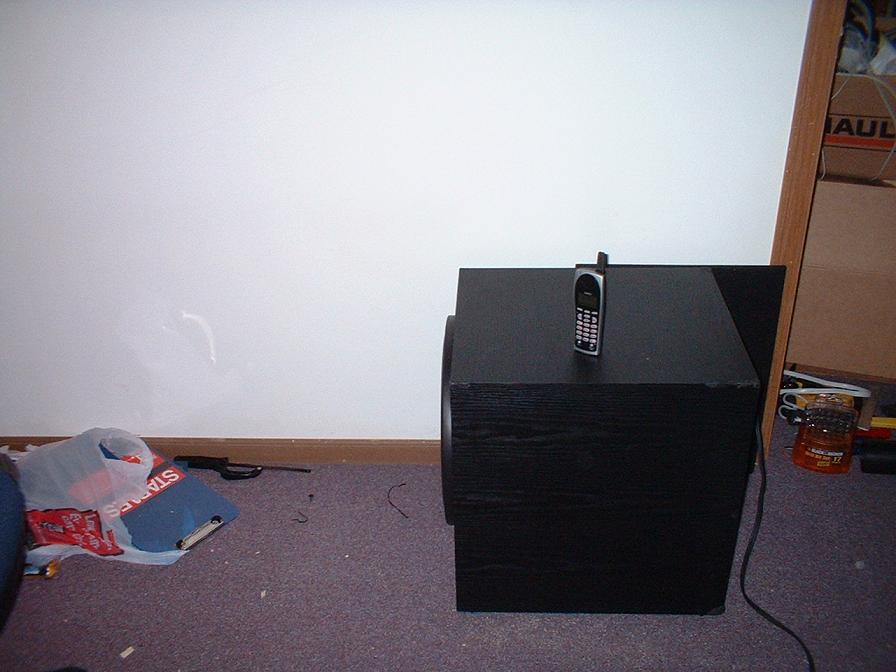

New Sub Placement (Side)

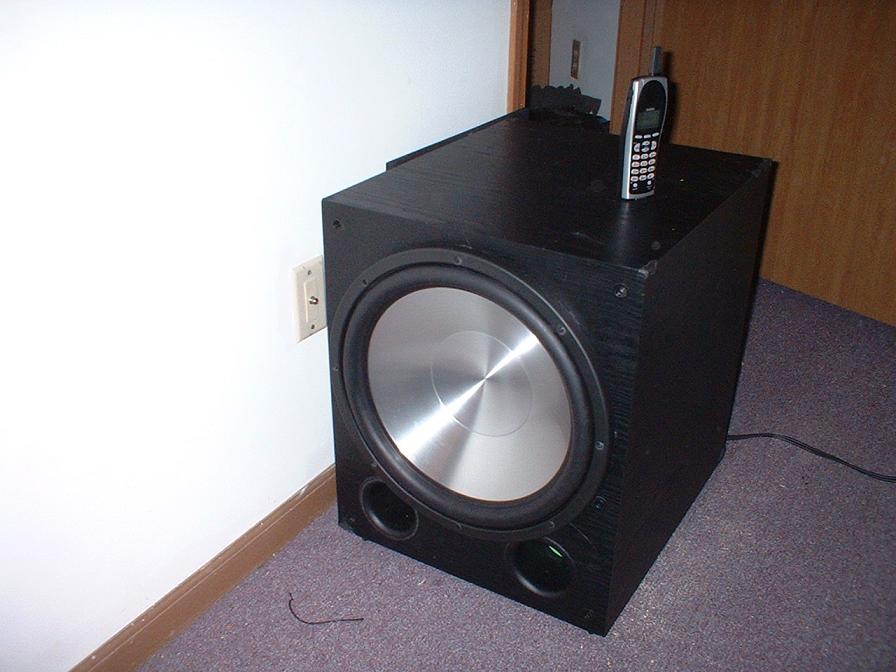

New Sub Placement (Front)
Rythmik Mounted
Bonus Video :: 10Hz Excursion http://www.KU74.net/sub/10Hz.avi
Requires DivX 5.05 codec.
This ends my Show & Tell.
Main Post
It is apparent that at louder volumes, my SW-15 cabinet is not capable of containing the AV15's power.
Much stronger bracing is needed.
This picture shows the stock bracing.
2 3" wide sidewalls run the height of the cabinet,
and are attached using a groove and black glue.
I need to brace the x,y, and z axis of the sub.
Using either 1"/1.125"/1.25" round oak dowels, or 1.5" X 1.5" rectangular oak legs/supports.
The size of the AV15 limits some bracing in the front.
Front-To-Back
I can run 1 support between the front-left-top and the mid-brace, another from the midbrace-left-top and the back,
and then the same for the front-left-bottom, front-right-top, front-right-bottom.
4 Braces
Top-To-Bottom
Two supports from top to bottom, in the rear section of the cabinet.
Could also add 2 supports to the existing bracing, and/or 1/2" dowel bracing in front.
2 or 4 Braces
Left-To-Right
2 supports in the back, 2 supports in the front.
4 Braces
Assuming I use 12 braces,
1" dowels would sum to 0.0932 ft^3,
1.25" dowels = 0.1456 ft^3
1.5" legs = 0.2670 ft^3
Here are my questions ::
1. Would my Front-To-Back bracing be effective?
How does my bracing plan look?
2. How much better would the 1.5" rectangular bracing be over dowels?
I am trying to lose as little volume as possible.
3. Here is a WinISD graph of Ported Vs Sealed
Red = Ported, tuned to 25Hz
Green = Ported, tuned to 22Hz (same port, polyfil added volume)
Yellow = Sealed
Right now my sub is sealed.
It was suggested I use a Linkwitz Transformer,
however I don't want to lose 5 or 8 or even more decibels, I enjoy a -lot- of bass.
I have a 4" precision port that can be up to around 15" (16") long,
which I can install in either the top or bottom of the sub.
Should I go ahead and do that?
WinISD says I should.
/Note!! With 380W, at 30Hz I am just under 26 m/s
and at 20Hz I am just under 36 m/s, which is just under peak air velocity for all frequencies.
40Hz is 14.5 m/s, 50Hz is 7.5 m/s, etc
+wow, that took me about 2hrs to write
