Understanding Multi-Zone Home Theater Receivers: An Essential Explainer

Multi Room Home Theater Diagram

Table of Contents

Home theater enthusiasts know that audio/video receivers (AVRs) are the brains behind an immersive entertainment experience.

But what if we could extend their functionality into other rooms? Well, you can with multi-zone home theater receivers.

Multi-zone AVRs distribute media throughout your home, taking inputs from Blu-ray players, turntables, and other media sources and outputting them through different speaker systems.

The result is a well-integrated home entertainment system that brings everything under one interface while providing independent control over each zone.

This article explains how multi-zone functions work, your connectivity options, and how to build a whole-home entertainment system.

What is a Multi-Zone Home Theater Receiver?

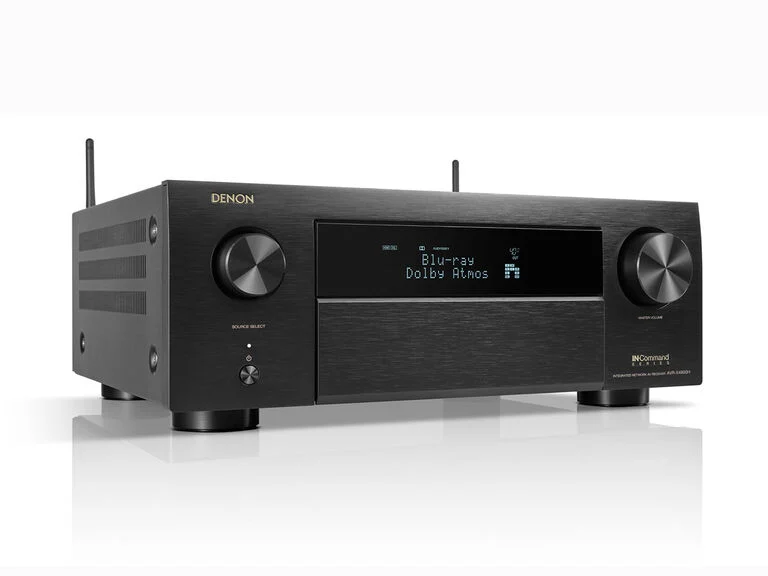

A multi-zone home theater receiver is an AVR that can send audio signals to additional speakers or zones in your home, independent of the main listening area.

Indeed, “multi-zone home theater receivers” is a long way to describe it. A better description might simply be an AVR that offers multi-zone support.

This means you can have different audio sources playing in different rooms or the same source playing in sync across all connected zones.

In either case, your AVR serves as the central hub of your home audio system, processing and distributing audio signals to various speakers throughout your home.

How Do Multi-Zone AVRs Work?

Multi-zone AVRs allow you to create separate and independent audio (and sometimes video) zones in your home. This makes it possible to play different content simultaneously in different areas — for example, streaming a podcast in the kitchen while someone else watches a movie in the living room at the same time, all controlled through a single AVR.

While primarily focused on audio, some multi-zone AVRs also support video distribution. This means they can send video signals to different rooms, allowing users to view different video sources on multiple screens.

Benefits and Uses of Multi-Zone Home Theater Receivers

Multi-zone AVRs are ideal for connecting multiple speakers to an AVR and controlling them independently using different source media. Let’s take a closer look at some of the benefits of multi-zone AVRs:

  • Whole-Home Audio Experience: Multi-zone audio offers numerous AV configurations. For example, you could have a turntable connected to the analog RCA inputs in your main listening room, a Blu-ray player connected via HDMI in your living room, and a CD player connected to the digital optical input in your bedroom.
  • Flexibility and Convenience: Multi-zone AVRs offer unparalleled audio distribution and control flexibility. You can have different audio sources playing in each room or synchronize playback across all zones, all managed from a single device.
  • Central Control: Consolidating your audio distribution into a single receiver reduces the need for multiple audio systems and complex wiring throughout your home. This simplifies your overall setup and makes managing your home audio experience easier.

And now some use cases for AVR-powered multi-zone audio:

Whole-Home Audio

Multi-zone AVRs offer central control over multiple sound systems. Imagine throwing a party where upbeat dance tracks pump through the speakers in the living room, while another room offers a chill vibe with smooth jazz or ambient tunes.

Beyond parties, the everyday benefits are also impressive. You could start your day with news or podcasts streaming in your kitchen and living room before switching to classical music for deep work sessions in your office.

Take advantage of your AVR’s capabilities to avoid connecting/reconnecting different devices when you move around your house.

Pro Audio For Everyone in Your Home

Multi-zone AVRs enable everyone to use the same input devices and sound systems. The alternative often gets messy.

Constantly reconnecting devices that other people have used, pairing and unpairing Bluetooth speakers, toiling with chaotic cables strewn all over the house…

You’ll put a stop to all of that by building a reliable multi-zone setup!

Two Sound Systems in One Room, Anyone?

And here’s another interesting way to use a multi-zone AVR – setting up dual sound systems in a single room.

This typically involves installing a two-channel stereo system in the same room as your 5.1 or 7.1 surround sound system.

Seems silly? It actually makes excellent sense in some cases. For example, you might have a Blu-ray player and vinyl turntable connected to your AVR, but is your surround sound system ideal for listening to music?

Possibly not. So, connect your AVR’s zone 2 preamp outputs to an external amp that powers a separate set of left and right speakers specifically for stereo audio.

You’ll gain an easy-to-control, high-end stereo system for music and a surround sound system for home theater, all within the same room, and switchable between other inputs.

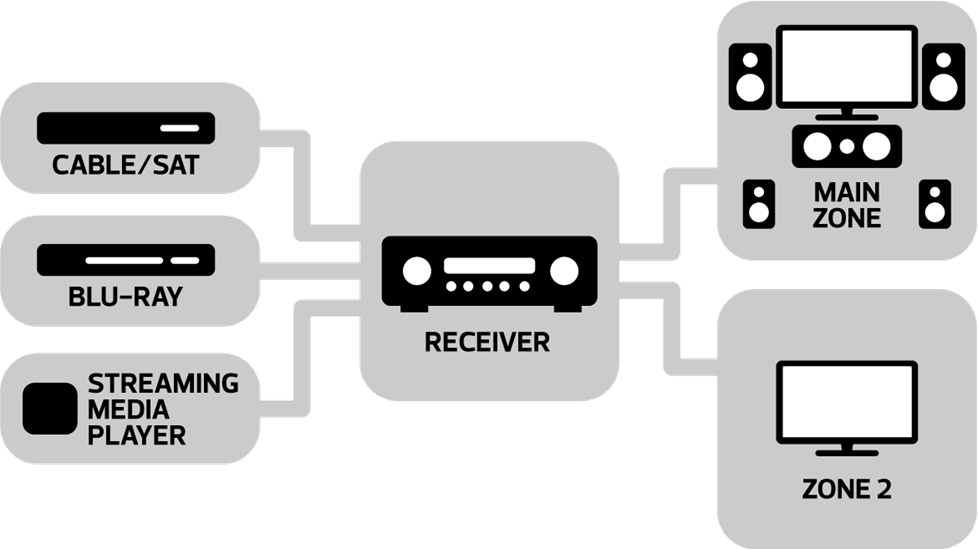

Multi zone home theater layout

Key Features to Consider For Choosing Multi-Zone AVRs

When choosing a multi-zone AVR, you’ll need to think about how many zones you want to create, the inputs and outputs you wish to connect, and whether you’d benefit from other features like voice control and smart home integration.

Here’s a comprehensive selection of features to look out for:

Inputs

Multi-zone receivers offer a wide range of input options to accommodate most media sources, including:

  • Analog RCA Inputs: These inputs use traditional red and white connectors for stereo audio. RCA inputs are very common and versatile, allowing connection from a wide variety of devices such as CD players, turntables (with a preamp), DVD players, and more. RCA inputs accept line-level signals, the standard output level for most audio devices.
  • Phono Inputs: Phono inputs are specifically designed to connect turntables directly. These inputs have a built-in preamp that boosts the very low output signal from a turntable to line level, which is necessary for the receiver to process the sound properly.
  • Digital Optical (TOSLINK) and CoaxialDigital optical inputs connect digital audio sources, such as CDs and digital audio players, providing high-quality digital audio transmission. Learn more about digital optical cables and their uses here.
  • HDMI: HDMI inputs are primarily used for audio and video sources like Blu-ray players, gaming consoles, and streaming devices. They can carry both high-resolution audio and video signals.
  • USB: Some AVRs feature USB inputs, allowing you to connect a USB drive containing digital audio files.
  • Bluetooth and Wi-Fi: Most multi-zone AVRs have built-in Bluetooth and/or Wi-Fi connectivity, enabling wireless audio streaming from smartphones, tablets, or computers.

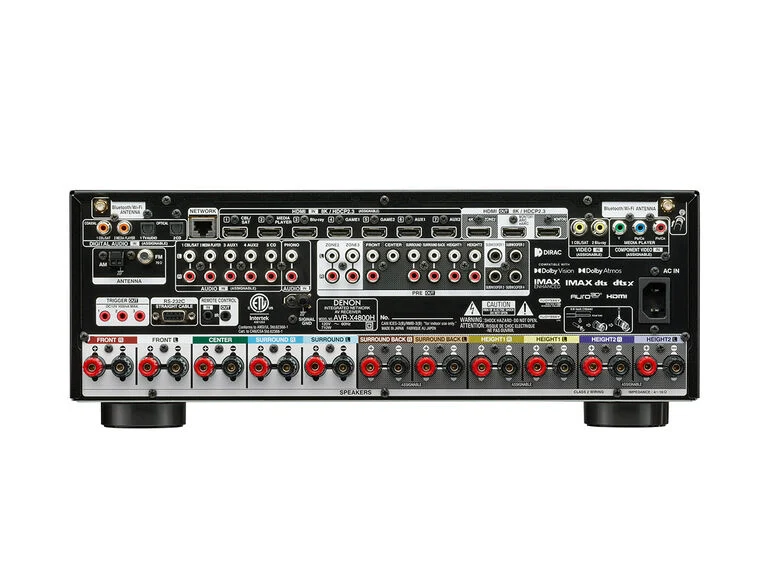

Outputs

Outputs send audio and video to different playback devices. Multi-zone receivers can offer several outputs to distribute audio and sometimes even video to different zones.

Common outputs include:

  • Powered Zone 2: Some 7.1-channel receivers allow you to reassign two channels to speakers in a second zone while running a 5.1-channel setup in your home theater room. You can hook up passive speakers to this type of setup.
  • Preamped Zone 2 Output: Some receivers provide a dedicated preamp output for Zone 2. This output can be connected to an external amplifier or powered speakers in the second zone, allowing you to maintain a 7.1 setup in the main room. However, you can’t directly connect passive speakers to the AVR – you’ll need to use an external amp or powered speakers.
  • Multiple Preamped Zone Outputs: Going beyond Zone 2, high-end receivers can support up to 4 zones, with preamp outputs for each additional zone. Again, you’ll need to connect dedicated amps or powered speakers for each speaker system.
  • HDMI Outputs: Some multi-zone receivers have multiple HDMI outputs, allowing you to send audio (and sometimes video) to different displays or soundbars across separate zones.



A note on powered speakers: Powered speakers have built-in amplifiers, so they can accept a line-level signal (like the one provided by AVR pre-outs) and amplify it internally to drive the speakers.

Other Features

In addition to inputs and outputs, keep these other features in mind:

  • Wireless Connectivity: Some multi-zone receivers offer built-in Wi-Fi and Bluetooth support, allowing you to stream audio from compatible devices to any connected zone.
  • User Interface and Control Options: A user-friendly interface is essential for a smooth multi-zone audio experience. Look for receivers with intuitive on-screen menus, mobile apps, or voice control. More on this shortly.



Are you in the middle of choosing an AVR? Check out our guide here.

Setting Up a Multi-Zone AV System

Right, let’s move on to the multi-zone setup process. Setting up multi-zone audio, as you might imagine, is fairly complex – especially when handling 3 or 4 zones.

On the bright side, once it’s done, it’s done (until you swap out or upgrade your devices, of course!). Here’s a detailed breakdown of the setup process:

Connections

Connect your audio sources to the appropriate inputs on your multi-zone receiver, ensuring you have all the necessary cables.

You’ll need to connect speakers from each zone to the corresponding outputs on the receiver. The type of connection will depend on your receiver’s available outputs and the speakers you are using, for example:

  • Powered Zone 2: If your receiver has dedicated powered outputs for Zone 2, you can connect passive speakers directly to these terminals with standard speaker wire.
  • Preamped Outputs: If your receiver has a preamp output for zones 2, 3, 4, etc. (usually in the form of RCA connectors; this is more common), you’ll need to connect these to an external amplifier or powered speakers (powered speakers have built-in amps).

Configuration

Configure the receiver’s settings to assign sources and enable multi-zone output. This process will vary depending on your receiver, so consult the user manual for detailed instructions.

Generally, you’ll need to navigate the receiver’s setup menu to assign input sources to each zone and enable the multi-zone feature.

Control

Control your multi-zone audio system using the receiver’s main remote, dedicated zone remote, mobile app, or voice control via a smart home system (this will take some figuring out but is worth it!).

Mobile apps that support multi-zone control include the Denon & Marantz Remote App, Onkyo Remote and Integra Remote Apps, Yamaha AV Controller App, and Pioneer iControlA/V5 App.

Voice control, on the other hand, is made possible through integration with voice assistants like Amazon Alexa, Google Assistant, and Apple’s Siri. When set up, voice assistants allow you to control various aspects of your multi-room AVRs, including but not limited to:

  • Powering the AVR on or off
  • Adjusting volume levels
  • Switching inputs
  • Playing music in specific rooms or zones
  • Controlling playback (play, pause, skip, etc.)


To enable voice control, your AVR must be compatible with one of the above assistants. Many modern AVRs are designed with this in mind and include built-in voice assistant support.

If your AVR doesn’t have built-in support, it may still be possible to control it via voice by using external devices such as smart speakers (e.g., Amazon Echo, Google Home) or smart home hubs that can interface with your AVR through your home network.

Setting up voice control involves connecting your AVR to the same network as your voice assistant device and configuring the assistant to recognize and control your AVR.

This often requires using the manufacturer’s app or software to link your AVR to your voice assistant account and may involve additional steps, such as enabling specific skills (in the case of Alexa) or actions.

Looking for a simpler cabled solution? You can purchase inexpensive remote extenders that connect via USB. So, you can run multiple speaker systems in different rooms and control them from those rooms rather than running back and forth.

Advanced Integration and Automation

For ultimate convenience and automation, consider integrating your multi-zone home theater receiver with a smart home control system like Control4, Crestron, or Savant.

These systems allow you to control your entire home audio experience, lighting, climate, and other smart home devices from a single interface.

Multi-Zone Receivers Versus Other Multi-Room Audio Solutions

While multi-zone home theater receivers offer ultimate control for distributing audio throughout your home, they’re not your only option.

Other multi-room audio solutions, such as Sonos, Yamaha MusicCast, DTS Play-Fi, or Alexa-controlled systems, provide a simple (yet less flexible) approach to whole-home audio.

This is fine if you want to use Bluetooth and Wi-Fi-compatible speakers, but that leaves you quite limited versus the more comprehensive setup offered by a multi-zone AVR.

But with that said, it’s worth noting that some multi-zone receivers now offer built-in support for these wireless multi-room audio platforms.

This allows you to enjoy the best of both worlds – the flexibility and power of a multi-zone receiver combined with the convenience of a wireless multi-room system.

Summing Up

Multi-zone home theater receivers allow you to distribute high-quality sound throughout your home.

There are so many possibilities, such as running video and music-oriented setups from the same AVR, dividing up different rooms with their own quality sound systems, or consolidating multiple existing systems under one setup.

It’ll take some time and perseverance to get everything set up, but achieving the pinnacle of multi-zone AV control is worth the work.

Looking for more advice or guidance? Dig into the HomeTheaterForum community here and discuss any multi-zone audio questions you might have!

Multi-Zone AV Receivers FAQ

Can I use my multi-zone home theater receiver as part of a wireless home audio system?

Yes, many modern multi-zone AV receivers come with built-in wireless connectivity options, such as Bluetooth or Wi-Fi. This allows you to stream audio wirelessly from compatible devices, like smartphones or tablets, to any connected zone in your home.

Some receivers even support wireless multi-room audio platforms, such as Apple AirPlay 2, Chromecast built-in, or Heos, enabling seamless integration with wireless speakers and other components.

How do I set up a multi-room audio system with my home theater receiver?

To create a multi-room audio setup with your home theater receiver, connect your audio sources to the appropriate inputs on the receiver. Then, connect powered speakers or external amplifiers with connected passive speakers to the corresponding outputs for each zone you want to set up.

Configure the receiver’s settings to assign sources and enable multi-zone output, and calibrate your speakers in each zone for optimal sound quality. Finally, use the receiver’s remote, mobile app, or integrated smart home system to control playback and manage your multi-room audio experience.

What’s the difference between multi-zone receivers and audio distribution receivers?

Multi-zone and audio distribution receivers are similar in that they allow you to send audio to multiple rooms or zones in your home. However, audio distribution receivers are typically more specialized devices, designed specifically for distributing audio signals to multiple zones.

They may offer more advanced features, such as individual source selection and volume control for each zone, or support for a larger number of zones. Multi-zone home theater receivers, on the other hand, are primarily designed for home theater use but offer the added benefit of multi-zone audio distribution.

Can I watch different video content in each zone with a multi-zone AV receiver?

While multi-zone AV receivers are primarily designed to distribute audio to multiple zones, some models offer multi-video distribution via HDMI. Depending on the receiver, you may be able to send a different video source to a second zone, such as a TV in another room.

However, this often requires a dedicated HDMI output for the second zone and may not support all video resolutions or formats. It’s essential to check the specifications of your multi-zone receiver to determine its video distribution abilities.
