When shopping for speakers, you’ll certainly encounter a huge range of technical specifications.
Frequency response, sensitivity, impedance, and so on, go a long way to explain how a speaker will sound, how much power it requires, and how well it’ll work with your other audio components.
However, making sense of them all together is tricky. Some mean more than others. Some are a need-to-know. Others are more marketing-speak.
Here, we’ve broken down all the key loudspeaker specifications anyone needs to know, explaining what they mean and how they relate to your listening experience.
By the end, you’ll have a clearer understanding of how to use specs to choose the right system.
Frequency Response
First up, frequency response. This tells you the range of frequencies a speaker can reproduce, from the lowest bass notes to the highest treble tones.
It’s expressed as a range extending from 20Hz to 20kHz (it may extend further, but this is the important bit of the range), representing the limits of human hearing. We can generally perceive sounds from about 20 Hz (very low bass) up to around 20,000 Hz (very high treble).
However, it’s important to note that our sensitivity to frequencies varies. We’re most sensitive to sounds in the midrange (around 1kHz-5kHz), which is where vocals and most instruments reside. Our perception of bass and treble frequencies is less acute, especially at the extremes of the audible spectrum.
So, while a speaker with a frequency response of 20Hz to 20kHz can theoretically reproduce the entire range of human hearing, the audibility and impact of frequencies at the edges of this range will be less pronounced.
The Importance of Frequency Response Charts
While the frequency range gives you a general idea of a speaker’s sound production, it’s the frequency response chart that provides a more detailed picture. This graph shows the speaker’s output level across the entire frequency spectrum.
A typical frequency response chart includes:
- Frequency (in Hz) along the horizontal axis
- Output level (in decibels) along the vertical axis
- A line or curve representing the speaker’s response
- Sometimes, multiple curves for different speaker settings or positions

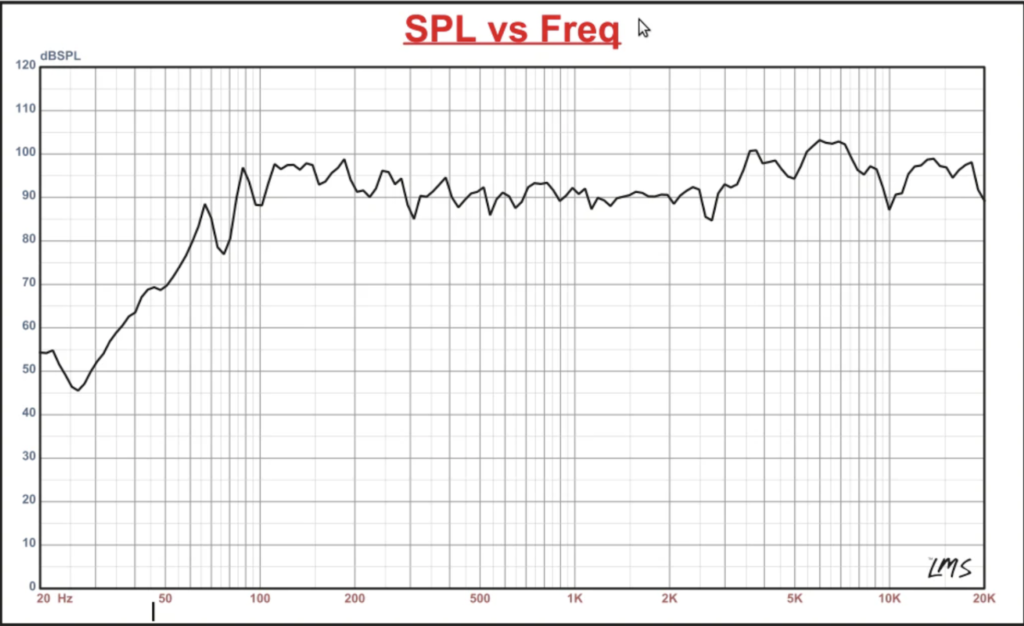

Above: The frequency chart of a relatively standard mid-range speaker, though it lacks sub-bass below 75 Hz or so.
When analyzing a frequency response chart, keep in mind that the ideal response can vary depending on the speaker’s purpose:
- Studio Monitors and Reference Speakers: These speakers aim for a neutral, uncolored sound. Their frequency response charts typically show a relatively even line without massive peaks or dips, indicating a balanced sound across the frequency spectrum.
- Subwoofers: Powered subwoofers are designed to reproduce only the lowest frequencies, usually below 200 Hz. Their frequency response charts will show a significant peak in the bass region and a steep drop-off above their crossover frequency. This is normal and desirable for a subwoofer.
- Consumer Speakers: Some consumer speakers, especially those designed for home theater or music listening, may have intentionally boosted or attenuated frequencies, often to boost the bass.
Ideally, full-range speakers will have a relatively smooth, consistent curve without erratic jumps or dips. This indicates a well-tuned speaker who transitions smoothly between frequency ranges.
Sensitivity (Efficiency)
Sensitivity, also known as efficiency, indicates how effectively a speaker converts power into sound.
In other words, it tells you how loud a speaker will play for a given amount of power from the amplifier.
Sensitivity is usually expressed in decibels (dB) of sound pressure level (SPL) that the speaker produces when driven with 1 watt of power, measured at a distance of 1 meter.
A typical sensitivity rating might look like “88 dB (2.83V/1m)”. The higher the dB number, the more efficient the speaker is at converting power into sound.
Why Does Sensitivity Matter?
It directly impacts the power requirements of your audio system. A more sensitive speaker will require less power from your amplifier to achieve a desired volume level.
Conversely, a less sensitive speaker will need more power to play at the same volume.
This is particularly important when matching passive speakers (those without built-in amplifiers) with external amplifiers or AV receivers.
If you have low-sensitivity passive speakers (so around 84 dB or less), you’ll need a high-powered amplifier to drive them to high volumes without straining.
On the other hand, high-sensitivity passive speakers (around 92 dB or more) can play loudly even with less powerful amplifiers.
For powered speakers (those with built-in amplifiers), sensitivity is less critical since the amplifier matches the speaker’s requirements. However, sensitivity can still give you an idea of how loud a powered speaker can play and how much headroom it has.
Impedance
Impedance is primarily relevant for passive speakers that require an external amplifier.
In technical terms, impedance is a measure of a speaker’s resistance to the flow of alternating current (AC) from the amplifier.
It’s measured in ohms (Ω) and is typically rated at 4Ω, 8Ω, or 16Ω. Most passive home audio speakers have an impedance between 4Ω and 8Ω, while car audio speakers can dip down to 2Ω or even lower.
For passive speakers, impedance determines how much electrical current a speaker will draw from an amplifier. Lower impedance speakers draw more current, which can put a strain on the amplifier if it’s not designed to handle it. It might seem odd, but higher impedance speakers draw less current, making them easier for amplifiers to drive.
Mismatching passive speakers and amplifiers in terms of impedance can lead to several issues:
- An amplifier driving speakers with too low an impedance may overheat, shut down, or even suffer permanent damage.
- An amplifier connected to speakers with too high an impedance may not be able to deliver enough power, resulting in lower volume levels and potentially poor sound quality.
To avoid these problems, always check the recommended impedance range for your amplifier or receiver, and choose speakers that fall within that range.
Most modern amplifiers can safely drive speakers with impedances down to 4Ω, but it’s always best to confirm this in the manufacturer’s specifications.
For powered speakers, impedance is less of a concern since the amplifier and speaker are designed to work together. The internal amplifier is matched to the speaker’s impedance, ensuring optimal performance without compatibility issues.
Recommended Power
The recommended power refers to how much power a speaker can take from an amplifier without distorting or being damaged, but also to ensure it has adequate power to sound good. There is no perfect amount of power you can send to a speaker, though it can range between 15-400 watts.
These numbers are based on controlled lab tests. A smaller model, like a satellite speaker requires less power than a large floorstanding tower speaker, but real-world performance is influenced by many other factors, like your room size, how far you sit, the speaker’s impedance rating, how many channels the amp is driving, what you’re listening to, and how loud you play.
For this reason, most brands recommend a power range (e.g. 30-200 watts) for each speaker, rather than one fixed number. It’s a more flexible and realistic way to guide amp pairing based on your actual setup.
In general, MORE clean power is better. It helps avoid clipping – a form of distortion that occurs when an amplifier is pushed beyond its limits. Clipping can be especially harmful to tweeters and can cause damage in just minutes at high playback levels.
That said, a more powerful amp isn’t a license to crank the volume. Any system can be damaged by being pushed too hard. But all else equal, a higher-powered amp is typically safer than an underpowered one, because it can deliver clean, undistorted power without straining.
What matters most is not overpowering your system, but giving it clean power within the recommended range. That’s how you get the best performance – and protect your gear at the same time.
Driver Size and Configuration
A speaker’s driver size and configuration play a massive role in its sound characteristics and overall performance.
Most speakers use a combination of the following:
- Woofers for bass
- Midrange drivers for vocals and instruments
- Tweeters for high frequencies
First, the size of a speaker’s woofer is often associated with its bass response. In general, larger woofers can move more air, which allows them to produce deeper, more powerful bass.
However, woofer size isn’t the only factor that determines bass performance. The woofer’s design, the speaker enclosure, and the overall tuning of the system also play integral roles.
Tweeters, being smaller, are responsible for reproducing high frequencies. The material and design of a tweeter can significantly impact a speaker’s treble clarity, detail, and dispersion.
Midrange drivers, as the name suggests, handle the critical midrange frequencies where most vocals and instruments reside. Dedicated midrange drivers in a 3-way speaker system can provide a cleaner, more detailed midrange compared to 2-way systems where the woofer also handles midrange duties.
Ultimately, the ideal driver size and configuration depend on the specific application and listening preferences.
Larger drivers and more complex configurations aren’t always better. It’s the overall design, quality, and integration of the drivers that determine a speaker’s sound quality.
Cabinet Design and Build Quality
A speaker cabinet’s design and construction interact with bass response, clarity, and resonance control.
Two common types of speaker enclosures are:
- Sealed (or acoustic suspension) enclosures, which provide tight, accurate bass response but may have limited low-frequency extension.
- Ported (or bass-reflex) enclosures use a tuned port to enhance bass output and extend low-frequency response, but may sacrifice some accuracy.
Further, the materials used in a speaker’s cabinet, such as MDF (medium-density fiberboard), plywood, or composite materials, will also affect its sound. High-quality, dense materials help to minimize unwanted vibrations and coloration.
Well-designed cabinets should minimize vibrations that can muddy the sound or cause distortion.
In fact, cabinet design and quality are often considered the elusive factor that divides standard and high-end speakers. The highest-quality drivers and amps in the world can’t make up for a shoddy cabinet!
Some brands, like SVS, place a strong emphasis on cabinet design, using premium materials and strategic bracing to create an inert environment that lets the drivers perform at their best.
Well-designed cabinets should minimize vibrations that can muddy the sound or cause distortion.
Crossover Design
In multi-driver speaker systems, the crossover network directs the appropriate frequencies to each driver (woofer, midrange, and tweeter). The crossover ensures each driver operates within its optimal frequency range, minimizing distortion and interference.
Crossovers can be passive or active:
- Passive crossovers use capacitors, inductors, and resistors to filter frequencies and are located after the amplifier.
- Active crossovers use electronic circuits to divide frequencies before amplification, offering more precise control but requiring separate amplifiers for each driver.
In terms of specs, you don’t need to worry much about crossover points unless you’re building or tuning a system with passive speakers, like DIY kits or custom setups.
That’s when the crossover frequencies, slopes, and how they match with the drivers really start to matter. You don’t want the speakers to overlap too much, as that will cause phase cancellation, resulting in thin sounds.
THD (Total Harmonic Distortion)
THD is a specification that measures the level of unwanted harmonic distortion a speaker produces. Lower THD values indicate a cleaner, more accurate sound reproduction.
However, THD ratings should be considered in context. Very low THD values (less than 1%) are often inaudible to most listeners, and some speakers with higher THD ratings may still sound pleasing to the ear.
If we’re honest, in most consumer listening cases, THD is not a particularly useful spec.
Speaker Placement and Room Acoustics
While speaker specifications provide valuable insights into performance, they don’t tell the whole story – you need to think about the room, too. Sound will always interact deeply with the environment around it.
The main room factors to consider include:
- Room size and shape: Larger rooms may require more powerful speakers, while smaller rooms may benefit from bookshelf or satellite speakers.
- Room materials: Hard surfaces like glass and concrete can cause reflections, while soft surfaces like carpets and curtains can absorb sound.
- Speaker placement: Proper placement, including distance from walls and listening position, can optimize sound quality and minimize room interactions.
Achieving the best possible real-world performance is tricky and requires a lot of trial, error, experimentation, and probably frustration!
Experiment with speaker placement and consider room acoustic treatments like bass traps, acoustic panels, and diffusers. These can help control reflections, reduce standing waves, and improve overall sound clarity.
Remember, while specifications are essential, the ultimate test of a speaker’s performance is how it sounds in your specific listening environment. Trust your ears and take the time to fine-tune your setup for the best possible sound!
Wrapping Up
Speaker specs are undeniably valuable for getting a sense of a speaker’s performance. They can guide you toward models that will likely sound great in your space.
But really, they’re just a starting point. Look for speakers with impressive specs, to be sure. But also consider your own listening habits and sonic preferences.
Brands like SVS make this easy by designing speakers that score high marks on the spec sheet while also delivering engaging, lifelike sound.
Their subwoofers and Prime Series and Ultra Evolution Series speakers are a perfect example – they marry technical prowess with that special sauce that gets you lost in your favorite albums and movies.
So go ahead and geek out over specs as you shop. But remember, your ears should always have the last word. Don’t be afraid to audition speakers in your home (SVS offers a risk-free in-home trial, for example).
Specs will point you in the right direction, but your listening experience is what really matters.
Trust your gut, trust your ears, and happy listening!
