Home Theater Receiver Setup: The Ultimate Guide

Home Theater Receiver Set Up Feature Image

Table of Contents

The receiver is the backbone of any home theater system, serving as the central hub that connects and controls all your audio and video components.

In short, the AV receiver is responsible for receiving audio and video signals from various sources, such as Blu-ray players, gaming consoles, and streaming devices, processing these signals, and sending the audio to your speakers and video to your display.

A well-configured home theater receiver setup will vastly enhance your home theater experience by providing immersive and responsive audio, high-quality video, and supreme control over your devices.

This guide will walk you through setting up your home theater receiver, from understanding the basics to advanced configuration and troubleshooting.

Understanding AV Receivers

AV receivers (AVRs) are the core of a home theater system. They’re designed to support a wide range of speaker configurations and provide a centralized hub for managing audio and video devices.

One of the main purposes of an AVR is to power and process multichannel surround sound. This allows you to create an immersive audio experience with 5.1, 7.1, or even more advanced setups like Dolby Atmos and DTS:X.

AVRs also offer multiple inputs and outputs for seamless switching between video sources, such as gaming consoles, streaming devices, and Blu-ray players, while sending high-quality video to your TV or projector.

With an AVR, you can elevate your home entertainment experience and enjoy the best audio and video in one convenient package.

Still searching for the perfect AVR for your setup? View our buyer’s guide here.

Comprehensive Receiver Connection Guide

You might be looking forward to meticulously setting up your home theater receiver, or you might just be eager to switch everything on.

In either case, with patience and attention to detail, you’ll be enjoying your favorite media in no time.

The first step is to gather all the necessary components and tools, such as your receiver, speakers, TV, video sources, speaker wire, HDMI cables, cable ties, and a wire stripper.

Once you have everything ready, carefully unbox your receiver and place it in a well-ventilated area with sufficient space for airflow. This will help prevent the receiver from overheating and ensure optimal performance.

Make sure the receiver is easily accessible for connecting devices and making adjustments.

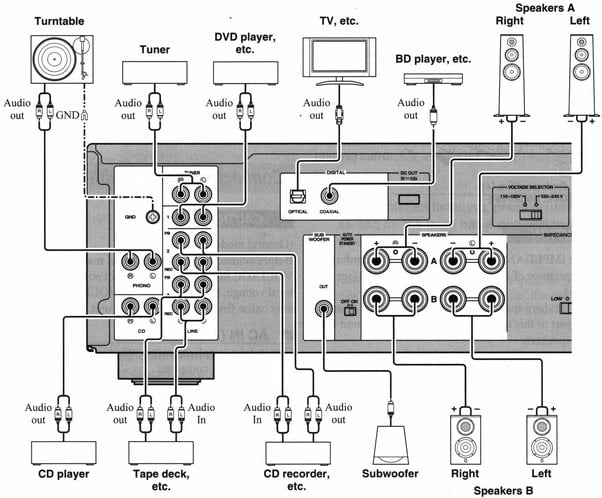

Speaker Connection diagram for home theater system

Connecting Speakers

Next, it’s time to position your speakers according to your chosen speaker configuration (e.g., 5.1, 7.1, 5.1.2, or more).

Take your time to carefully position each speaker, ensuring they are at the appropriate height and angle relative to your listening position. This will typically include:

  • Front left and right speakers

  • Center channel speaker

  • Surround speakers

  • Subwoofer

  • Height speakers or upward-firing speakers (for Dolby Atmos or DTS:X systems)

With your speakers in place, you can now connect them to your receiver. This involves running speaker wire from each speaker to the corresponding terminal on the receiver. Be sure to use high-quality speaker wire of the appropriate gauge for your speakers and the length of the run.

When connecting the speaker wires:

  1. Use a wire stripper to remove about 1/2 inch of insulation from the ends of each speaker wire.

  2. Twist the exposed wire strands tightly to prevent fraying.

  3. Connect the positive (red) and negative (black) wires to the appropriate terminals on the receiver and speakers.

  4. Double-check your connections to ensure they are secure and do not touch each other.

Connecting Video Sources

Next, it’s time to connect your video sources to the receiver using HDMI cables. Common video sources include streaming devices (Apple TV, Roku, etc.), gaming consoles (PlayStation, Xbox), cable or satellite boxes, and Blu-ray players.

Looking for how to set up your Blu-ray player? Read our guide here.

Use high-quality cables rated for the bandwidth your devices require, especially if you’re dealing with 4K or 8K content. Ultra High Speed HDMI cables are necessary for 8k content at 60Hz and 4k content at 120Hz, while High Speed cables are required as a minimum for 4k content at 30Hz, 3D, and Deep Color.

Using cables not rated for the necessary bandwidth can result in signal degradation, visual artifacts, or even complete loss of picture.

Once your video sources are connected, you can connect your TV, projector, or monitor to the receiver.

  • If your TV or projector supports an Audio Return Channel (ARC) or eARC, use an HDMI cable to connect your TV’s ARC or eARC port to the corresponding output on your receiver.

  • If your TV doesn’t support ARC or eARC, use a separate optical or coaxial digital audio cable to send audio from your TV to the receiver. Read up about optical audio connections here.

If you have any additional audio sources, such as a turntable or CD player, connect them to the appropriate inputs on your receiver using RCA cables for analog audio or optical/coaxial cables for digital audio.

Home Theater Audio Optimization and Calibration

With your receiver and components physically connected, it’s time to fine-tune your audio settings for the best possible sound. To do this, you’ll run your receiver’s room calibration system.

One note: Many AVRs come with a microphone and stand designed specifically for this purpose, which is what you’ll be using. It’s worth mentioning that room calibration software varies in complexity, with some being more user-friendly than others. The basic steps include:

  1. Place the calibration microphone at your primary listening position.

  2. Follow the on-screen instructions to initiate the calibration process.

  3. The receiver will play a series of test tones and measure how these tones interact with your room’s acoustics.

  4. The receiver will automatically adjust settings like speaker levels, distances, and equalization based on the measurements.

You may also need to measure the distance from each speaker to your main listening position and input these distances into the speaker setup menu.

This helps the receiver apply the appropriate delay to each speaker’s output so that all sounds reach your ears simultaneously, creating a cohesive and accurate soundstage.

Manual Fine-Tuning

After running the room calibration software, you may want to fine-tune the speaker levels manually using an SPL meter or a smartphone app that measures decibel levels.

  • Play a test tone or pink noise through each speaker individually.

  • Adjust the levels in your receiver’s settings menu until each speaker is outputting sound at around 75 dB.

  • This ensures a balanced and immersive soundstage.

There are a couple of extra steps to follow if you have a surround sound setup with Dolby Atmos or a DTS:X setup with height speakers:

  1. Enable these formats in your receiver’s audio settings menu.

  2. Assign the appropriate speaker roles (e.g., front height, top middle) to match your physical speaker placement.

  3. Play a test clip with Dolby Atmos or DTS:X content to verify that the height channels work correctly and create the desired immersive effect.

Phase and Polarity Check

Before finalizing your speaker setup, it’s crucial to check the phase and polarity of your speakers to ensure they are working together correctly.

Most receivers have a built-in phase test that plays pink noise through each speaker. To check the phase:

  1. Access your receiver’s speaker setup menu and find the phase test option.

  2. Start the phase test and listen to each speaker individually.

  3. If a speaker sounds thin or out of phase compared to the others, try reversing the positive and negative wires at the speaker terminals.

  4. Rerun the phase test to confirm that all speakers are in phase and working together seamlessly.

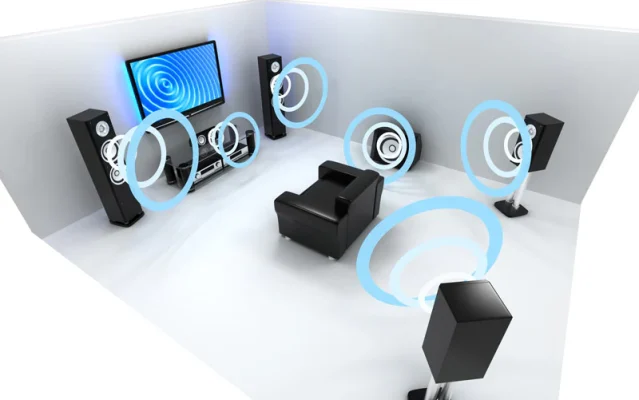

Audio-Calibration

AVR Video Configuration

Now we’re moving on to video configuration, which is usually simpler than setting up advanced sound systems. Yep, you’re almost there!

  1. Set the HDMI output resolution to match your TV’s native resolution (1080p, 4K, or 8K).

  2. If using a 4K or 8K TV, ensure your HDMI cables are rated for the necessary bandwidth (18 Gbps for 4K, 48 Gbps for 8K).

  3. Enable High Dynamic Range (HDR) and Wide Color Gamut (WCG) if supported by your TV, receiver, and video sources.

  4. Choose the specific HDR format (e.g., HDR10, Dolby Vision, HDR10+) that your devices support.

  5. Experiment with your receiver’s video processing settings, such as upscaling and noise reduction, to see if they improve picture quality for your setup and content preferences.

  6. Check your receiver’s aspect ratio and overscan settings to ensure a proper fit for your content and screen.

  7. Consider the chroma subsampling format (e.g., 4:4:4, 4:2:2, 4:2:0) supported by your devices and content. 4:4:4 provides the best color accuracy but requires more bandwidth, while 4:2:0 is more common for compressed video content.

You’ll definitely need your manual by your side when setting up your AVR. Feeling a bit daunted? Fear not! Once you’ve truly dialed in your system, it will serve you well for years to come, so long as you look after it well, that is (more on that shortly).

The HomeTheaterForum community has some excellent resources if you’re stuck or need advice – don’t hesitate to jump in with any questions!

Don’t Forget Your Cable Management!

With all of your components connected, it’s time to manage your cables.

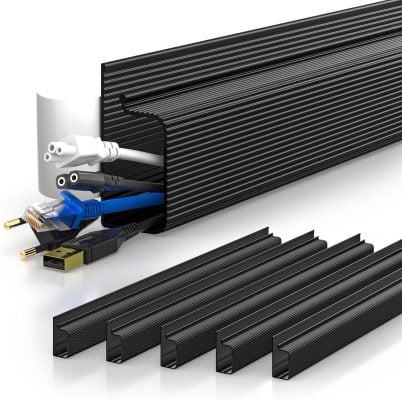

Use cable ties and adhesive-backed cable clips to bundle and organize your cables, routing them along the edges of your room or behind your entertainment center to keep them hidden and tidy. If you need to run cables through walls:

  • Use a stud finder to locate and avoid drilling into wall studs or electrical wires.

  • For drywall, use a drywall saw to cut holes and route the cables carefully.

  • For masonry, use a masonry drill bit and anchors to secure cable runners or conduits.

Advanced AVR Features and Setup

Once you’ve completed your home theater receiver’s basic setup and audio configuration, you can explore the advanced features of many modern receivers.

The precise names for these settings and their whereabouts in the menus vary widely between AVR manufacturers and models, but the fundamentals are pretty consistent.

Multi-Zone Audio Setup

Multi-zone audio allows you to enjoy different audio sources in different rooms, all controlled by your home theater receiver. To set up multi-zone audio:

  1. Connect additional speakers to your receiver’s dedicated multi-zone speaker terminals, usually labeled as “Zone 2” or “Zone 3.”

  2. If your receiver has powered zone outputs, connect the speakers directly. If not, use a separate amplifier for each additional zone.

  3. In your receiver’s setup menu, navigate to the multi-zone settings and assign input sources to each zone.

  4. Adjust the volume levels for each zone independently, either through the receiver’s main interface or a separate remote control or smartphone app.

  5. Test the multi-zone audio by playing different sources in each zone and ensuring the sound is properly distributed and controlled.

Voice Control Setup

Voice control allows you to operate your home theater system hands-free using popular voice assistants like Amazon Alexa or Google Assistant. To set up voice control:

  1. Confirm that your receiver is compatible with your preferred voice assistant by checking the product manual or manufacturer’s website.

  2. Connect your receiver to your home network using Wi-Fi or Ethernet, as voice control functionality requires an internet connection.

  3. In your receiver’s setup menu, navigate to the voice control settings and follow the instructions to link your receiver to your voice assistant. This typically involves enabling a skill or linking an account through the voice assistant’s mobile app.

  4. Explore the commands your receiver supports, which may include advanced functions like playing specific content from streaming services or adjusting audio settings.

Customizing Sound Modes

Many home theater receivers offer preset sound modes optimized for different types of content, such as movies, music, or sports. To customize these sound modes:

  1. In your receiver’s setup menu, locate the sound mode settings.

  2. Select a preset sound mode that best suits your content and listening preferences.

  3. Adjust the individual parameters within the sound mode, such as bass, treble, or surround effect levels, to fine-tune the audio to your liking.

    Save your customized sound mode settings to easily recall them for future use.

  4. Repeat the process for other sound modes as desired, creating a set of personalized audio profiles for various content types.

Troubleshooting Common Home Theater Receiver Issues

Even with a well-configured system, you may encounter issues from time to time.

Here are some common problems and their solutions:

  • Audio delay: If the sound is not synchronized with the video, use your receiver’s audio delay or lip-sync adjustment feature to correct the issue. Start with small increments (around 10ms) until the audio and video align perfectly.

  • HDMI handshake issues: Sometimes, HDMI devices may fail to communicate properly, resulting in a blank screen or error message. To resolve this, try turning off both devices, disconnecting and reconnecting the HDMI cable, and then turning the devices back on. If this doesn’t work, you may be able to solve the problem by turning components on in a different order. If the issue persists, check that your HDMI cables are in good condition and that your devices are running the latest firmware.

  • Calibration errors: If your receiver’s room calibration tool produces unsatisfactory results, try repositioning the microphone or adjusting the gain levels in the receiver’s settings menu. If the issue persists, consider manually calibrating using an SPL meter or a smartphone app.

Note: For more detailed information on troubleshooting and maintaining your home theater system, visit our troubleshooting guide.

Maintenance and Upgrades

Like any piece of technology or gadget, AVRs last the longest when you give them some TLC.

Cleaning and Dust Prevention

Dust buildup on your receiver and speakers can affect their performance and cause damage over time. Regularly dust your components using a soft, dry cloth or a can of compressed air. Dust the vents on your receiver to maintain proper airflow and prevent overheating.
Mid-range and bass driver cones and their rubber surrounds can be safely wiped down using a fine cloth slightly dampened with water. This keeps your speakers in top condition.
However, it’s crucial to exercise caution when cleaning tweeters, especially those with soft dome designs or other delicate materials. Tweeters are far more sensitive than their mid-range and bass counterparts, and any physical contact can potentially cause dents or damage.
If your components have accumulated a lot of dust or dirt, consider using a vacuum cleaner with a brush attachment to gently remove the debris. Regular cleaning not only ensures optimal performance but also prolongs the life of your equipment.

Cable Management and Inspection

Periodically inspect your speaker wire connections to ensure they are secure and not corroded. If you notice any fraying or damage to the wires, replace them promptly to avoid short circuits or other issues.

Use cable ties, Velcro straps, or wire channels to organize your cables and prevent them from becoming tangled or damaged.

When running wires through walls or under carpets, use appropriate conduits or wire guards to protect them.

Firmware Updates

As technology advances, manufacturers often release firmware updates for home theater receivers to fix bugs, improve performance, and add new features.

Periodically check your manufacturer’s website or the receiver’s built-in menu for available firmware upgrades.

Before updating, read any release notes or instructions provided by the manufacturer, as the update process may vary depending on the model. Sometimes, you may need to download the firmware update to a USB drive and install it on your receiver.

By keeping your receiver’s firmware up-to-date, you can ensure that you have access to the latest features and the best possible performance.

Room Acoustics Optimization

Home theater system optimization also benefits from alterations to your room’s acoustics.

Simple adjustments like repositioning your speakers, adding acoustic panels or bass traps, and using a rug to reduce reflections can affect sound quality.

If you have a dedicated home theater room, consider hiring a professional acoustician to analyze your space and provide recommendations for improving its acoustics. They’ll likely suggest installing sound-absorbing materials, acoustic panels, or diffusers.

If you have a limited budget, start with bass traps in the rear corners of the room (the furthest away from the speakers) and consider adding acoustic panels to the back of the room.

Wrapping Up

Setting up new AV gear – you either love it or hate it. Regardless of which camp you’re in, be thorough and patient – you’ll thank yourself later.

Start with a solid foundation by properly connecting your components, then fine-tune your setup using your receiver’s room calibration and manual adjustment tools.

Don’t hesitate to experiment with different settings and configurations to find what works best for your room and personal preferences.

And if you encounter any issues along the way, consult your receiver’s manual or dive into the HomeTheaterForum community for solutions.

With a well-configured home theater receiver as the backbone of your system, you’ll be able to enjoy your favorite movies, TV shows, and music with stunning clarity and detail.

AVR Setup FAQs

Understanding speaker impedance

When it comes to choosing and installing speakers, you might have to query your speakers’ impedance and whether your AVR can handle them. Speaker impedance, measured in ohms (Ω), represents the electrical resistance of the speaker to the audio signal from the amplifier. Common speaker impedances are 4, 6, and 8 ohms. Lower impedance essentially means the speaker demands more current from the receiver, while higher impedance requires less current.

  • 8 Ohm Speakers: Most AVRs are designed to work with 8 ohm speakers, which is the most common impedance. An 8 ohm speaker presents an easy load for the receiver, allowing it to operate efficiently without excessive strain on the amplifier. It’s worth mentioning that some high-end speakers are 16 ohm these days (albeit mostly in pro-audio settings).

  • 6 Ohm Speakers: Many AVRs are also compatible with 6 ohm speakers. However, checking the receiver’s specifications is important to ensure it can handle the slightly higher current demand of 6 ohm speakers compared to 8 ohm speakers.

  • 4 Ohm Speakers: 4 ohm speakers present a more challenging load for AVRs due to their higher current demand. Some receivers are designed to handle 4 ohm loads, but many are not. Using 4 ohm speakers with a receiver that’s not rated for them can lead to overheating, reduced power output, and ultimately, damage to your AVR and speakers.

Ensuring proper matching

To ensure the best performance and protect your equipment, always match your speakers’ impedance to your AVR’s capabilities:

  1. Check the receiver’s manual or specifications to determine its supported impedance range.

  2. If using 4 ohm speakers, make sure your receiver is explicitly rated to handle 4 ohm loads.

  3. If your receiver is incompatible with 4 ohm speakers, consider using an external amplifier designed for 4 ohm loads or choose speakers with a higher impedance (6 or 8 ohms) that match your receiver’s specifications.

  4. When in doubt, opt for speakers with an 8 ohm impedance, as they are compatible with the majority of home theater receivers.

  5. Using Speakers with Mixed Impedances: In some setups, speakers with different impedances might be used (e.g., 8 ohm front and 6 ohm surround speakers). While not ideal, this can work if your AVR is capable of handling the lowest impedance among them. However, the preference should always be to use speakers with the same impedance.

How do I know if my receiver has enough power for my speakers?

To determine if your receiver has enough power for your speakers, compare the receiver’s power output (watts per channel) to the speakers’ recommended amplifier power range. Focus on the speaker’s RMS or continuous power handling, not the peak power.

Ideally, the receiver’s output should match or fall slightly below the speaker’s RMS rating. If the receiver’s power significantly exceeds the speaker’s RMS rating, be cautious with the volume to avoid damage.

Conversely, if the receiver’s power is too low, the speakers may not reach their full potential, resulting in suboptimal performance. Underpowered receivers can also cause damage to speakers over time, as the amplifier may clip or distort the audio signal, putting undue stress on speaker components.

Can I add more speakers to my receiver in the future?

Yes, you can add more speakers to your receiver in the future as long as your receiver has enough channels to support them. For example, if you have a 5.1-channel receiver, you can add two more speakers to create a 7.1-channel setup.

However, ensure that your receiver has enough built-in amplification for the extra channels. Before expanding your system, consult your receiver’s manual to ensure it supports the desired speaker configuration and has the necessary connections.

How often should I run my receiver's room calibration tool?

Running your receiver’s room calibration tool after any major changes to your room or speaker placement is recommended. This includes moving your furniture, adding or removing large items (e.g., rugs, curtains), or repositioning your speakers.

Even minor changes in your room’s layout can affect its acoustics and your system’s performance. Even if no major changes have occurred, it’s still a good idea to recalibrate your system every 6-12 months to keep it at peak performance.
