Rectangle on projector display

Discussion in 'Displays' started by LM3, Aug 12, 2018.

  1. LM3

    LM3 Auditioning

    Joined:
    Aug 12, 2018
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    0
    Real Name:
    Leonard Mahone

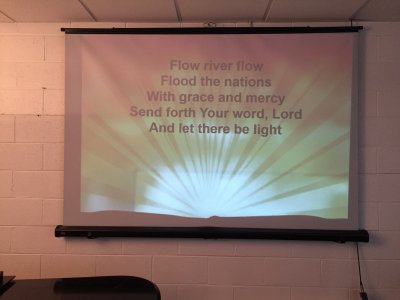

    I am trying to help our church. Unknown projector. Suddenly started showing a dim rectangle in the bottom right of the projector display. Not on the laptop display.


    Attached Files:

  2. Mike Frezon

    Mike Frezon Moderator
    Moderator

    Joined:
    Oct 9, 2001
    Messages:
    50,983
    Likes Received:
    13,952
    Trophy Points:
    9,110
    Location:
    Rensselaer, NY
    Welcome to the HTF, Leonard. :welcome:

    I've moved your post into our "Displays" sub-forum to see if we can't get our in-house experts on the job for you.

    Is that rectangle you're talking about running along 2/3 of the bottom of the screen (starting under the letter "S" in "Send forth")?

  3. LM3

    LM3 Auditioning

    Joined:
    Aug 12, 2018
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    0
    Real Name:
    Leonard Mahone
    Yes. That is exactly where the rectangle is.

  4. John Dirk

    John Dirk Cinematographer
    Supporter

    Joined:
    May 7, 2000
    Messages:
    2,518
    Likes Received:
    947
    Trophy Points:
    4,110
    Location:
    ATL
    Real Name:
    JOHN
    Welcome! I don't believe the projector is the problem. I would take a look behind the screen.

  5. LM3

    LM3 Auditioning

    Joined:
    Aug 12, 2018
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    0
    Real Name:
    Leonard Mahone
    Noth
    Nothing behind the screen.

  6. John Dirk

    John Dirk Cinematographer
    Supporter

    Joined:
    May 7, 2000
    Messages:
    2,518
    Likes Received:
    947
    Trophy Points:
    4,110
    Location:
    ATL
    Real Name:
    JOHN
    Do you have another [preferably smooth, such as drywall] surface you can temporarily aim the projector at just to quickly rule out anything related to positioning? Also, do you know the make and model of the projector?

  7. LM3

    LM3 Auditioning

    Joined:
    Aug 12, 2018
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    0
    Real Name:
    Leonard Mahone
    It is still there with the lights off and we have been doing the exact same stuff for several years and it just appeared this Sunday- so not sure where it could be from.

  8. Malcolm R

    Malcolm R Executive Producer

    Joined:
    Feb 8, 2002
    Messages:
    17,462
    Likes Received:
    4,345
    Trophy Points:
    9,110
    Real Name:
    Malcolm
    Something on the projector lens?

    Seems like an odd quirk to be in-projector?

  9. Mike Frezon

    Mike Frezon Moderator
    Moderator

    Joined:
    Oct 9, 2001
    Messages:
    50,983
    Likes Received:
    13,952
    Trophy Points:
    9,110
    Location:
    Rensselaer, NY
    I know nothing about projectors...but it weirdly looks like a reflection of some sort.

    John Dirk likes this.
  10. Message #10 of 12 Aug 13, 2018
    Last edited: Aug 13, 2018
    John Dirk

    John Dirk Cinematographer
    Supporter

    Joined:
    May 7, 2000
    Messages:
    2,518
    Likes Received:
    947
    Trophy Points:
    4,110
    Location:
    ATL
    Real Name:
    JOHN
    Yep. I agree.

    I'm not sure where you're going with this. Of course it is. :) If you can't re position the projector as previously suggested, maybe try holding a sheet of white paper in front of it as close as needed to produce a full screen image on the paper. There are only three components here, the projector, the screen and whatever is [or isn't] behind the screen. If you still see the unwanted image on the sheet of paper then the problem is inside the projector. If you don't then it has to be one of the other two components.

    Well, actually there's one more possibility. You can try disconnecting the laptop. If the projector can project a blank screen free of this anomaly then the problem could be in the presentation software or the laptop.

    Good luck.

  11. Mark-P

    Mark-P Producer

    Joined:
    Sep 26, 2005
    Messages:
    4,673
    Likes Received:
    2,691
    Trophy Points:
    4,110
    Location:
    Camas, WA
    Real Name:
    Mark Probst
    It looks to me like image burn-in. Was the a specific slide that was shown on the projector for a long period of time?

  12. LM3

    LM3 Auditioning

    Joined:
    Aug 12, 2018
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    0
    Real Name:
    Leonard Mahone
    Not that I know of. Used to project Sunday service.
